Automatic Cloud Point Tester for Surfactant saap-6cp

Automatic Cloud Point Tester for Surfactant saap-6cp

Apr 4,2024 Comments Off on Automatic Cloud Point Tester for Surfactant saap-6cp By Glorious Green PCB

aap-6cp

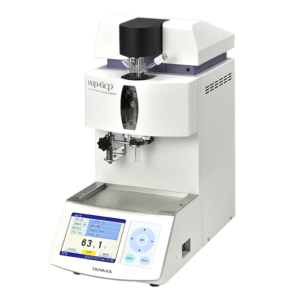

Model aap-6cp automates the cloud point test of nonionic surfactants.

  • Ergonomically color-coordinated display for high visibility and intuitive switch operation.
  • Enhanced versatility, including Ethernet for LIMS, USB port for flash memory or keyboard, password protection, and data storage (max.200 results).
  • All-in-one chassis design: compact, lightweight, and premier exterior.

User-friendly measuring cell
The measuring cell can be easily removed, and water-jacketed measuring cells are also available as an option for sub-ambient temperatures.

Easy operation
Just sample the specimen, enter the expected cloud point， and press the START key; all the rest of the test procedures, such as eating,
cooling and cloud point detection are performed automatically.

        CATALOG

Specifications

Related Test Methods ASTM D2024
Samples Nonionic surfactants
Measuring Range Ambient +20 to 90 ℃ (194 ℉)

For below ambient + 20 ℃, use the optional water jacketed measuring cell and a cryostat.
Temperature Sensor Pt100 in stainless steel sheath
Cloud Point Detector Photo-electric cell, with special detection circuitry
Measuring Cell Modified U-Tube type. Vacuum jacketed glass cell with PTFE stopcock at the bottom for drainage.
Display 5.7 inch color LCD with LED back light
Heater Immersion heater in stainless steel sheath: 20W
Sequence Control By an on-board microcomputer
Test Mode Cloud Point Test, Manual Temp Set
I/O Ports Ethernet x 1 for LIMS

USB x 1 for Flash Memory or Keyboard

RS-232C x 1 for PC or Optional Printer
Safety Mechanism Automatically shuts off and the problem is reported by buzzer and display, in case:

(a) ECP+10 ℃ is reached

(b) Temperature sensor is found defective

(c) Light projector or receiver is found defective

(d) Built in battery is found drained out.

(e) Control computer runs away (no display)
Size （W x D x H） 230W x 470D x 490H (mm)
Weight 14 kg
Installation Environment RT: 10 to 40 ℃　RH: Less than 90%
Power Supply AC100 V to 240V 200 VA (max) 50 / 60 Hz
Standard Accessories 1.1000069 Measuring Cell, Lower　　 1 pc

2.1000886 Bushing for AAP　　1 pc

3.1000878 Measuring Cell Stand 　　1 pc

4.1003737 Hexagonal Wrench 　　1 pc

5.1000708 Glass Tube Fuse (2A) 　　1 pc

6.1001507 AC Power Cord, 3.0m for 100 to 120 V　　 1  pc

7.1006151 AC Power Cord, 2.5m for 220 to 240 V 　　1 pc

8.USB Stick 　　1 pc
Optional Accessorie
  1. 1006018 Printer, NEX-C200R01 100V 　　1 pc
  2. 1006019 Printer, NEX-C200R05 200V 　　1 pc
  3. 1005861 Printer Roll Paper W58XD50 　　1 pc
  4. 1000262 Mini USB Keyboard 　　1 pc
  5. 1000070 Water Jacketed Measuring Cell, Lower 　　1 pc
  6. 1000871 Insulating Tube for Low Temp. 　　1 pc
Suggested spares
  1. 1000882 Measuring Cell, Upper, 2-Inlet 　　1 pc
  2. 1000069 Measuring Cell, Lower 　　1 pc
  3. 1000892 Temperature Sensor 　　1 pc
  4. 1000892 Heater 　　1 pc
  5. 1000708 Glass Tube Fuse 2A 　　1 pc
